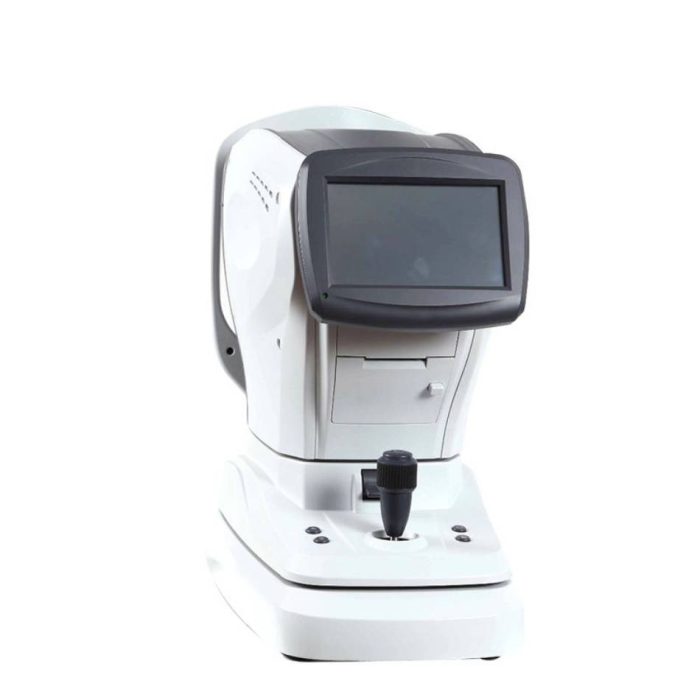

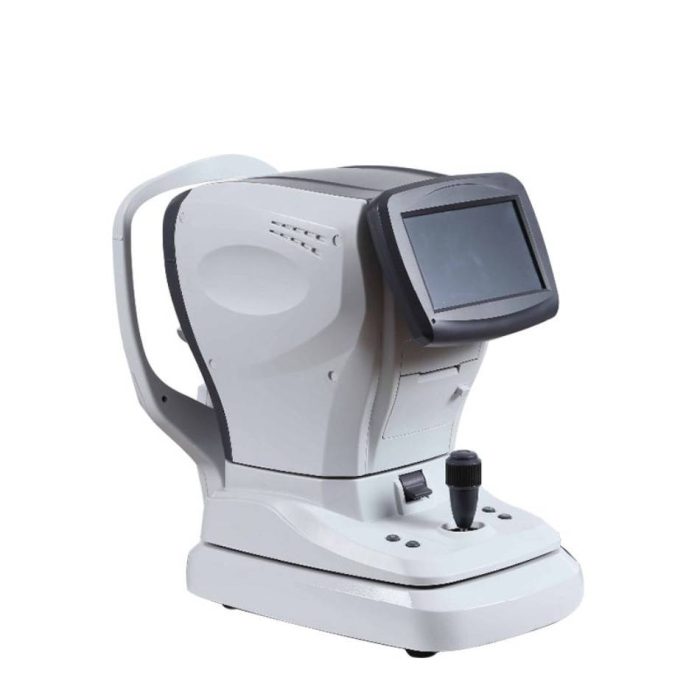

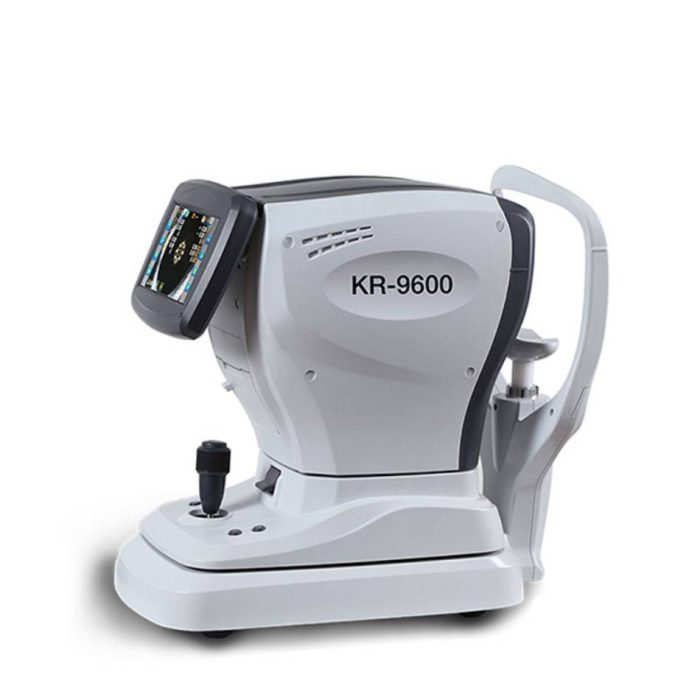

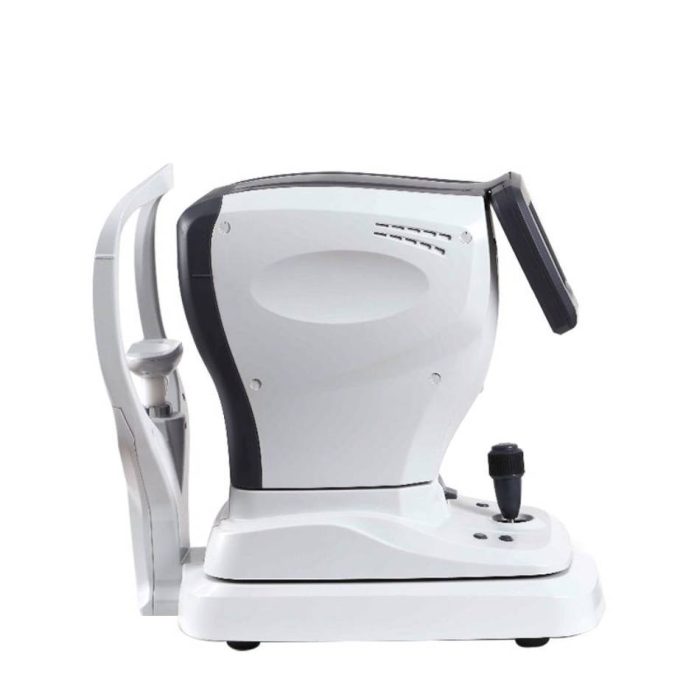

Ophthalmic Refractor Keratometer Auto Refractometer KR-9600

KR-9600 Auto Ref Keratometer   1. Fashion and compact design. 2. Adopt the ARM Cortex-A8 processor provides faster measurement. 3. Advanced refraction measurement technology, image analysis more entirely, enable the reliable measurement result and optimize date consistency. 4. Automatic identification the best measurement position for keratometry,avoid the operating error and enable the accurate Keratometry measurement. 5. IOL function available. Measurement mode K/R Refraction/ Keratometry measurement REF Refraction measurement KER Keratometry measurement Refraction measurement Vertex Distance 0.0, 12.0, 13.75, 15.0mm Sphere -25.00~ 22.00DD(0.12/ 0.25D step)(VD=12mm) Cylinder 0.00~±10.00D(0.12/0.25 step) Axis 0~180°(1°step) Pupil Distance 10~85mm Minimum measurable pupil diameter 2.0mm Target Automatic fogging target Keratometry Measurement (KR-9600) Curvature radius 5~10mm(0.01mm step) Refractive power 33.75D~67.50D(0.12/0.25D step) Cylindrical power 0.00~15.00D(0.12/0.25 step) Axis 0~180°(1°step) Corneal diameter 2.0~12.00mm Hardware specification Monitor 7.0 inch Color LCD Printer Thermal printer with easy loading and auto cutter Power saving 5/15 minutes Data output RS232/Blue tooth Power supply AC100~240V, 50/60 HZ,50W Dimensions/Weight 262(W)*487(D)*467(H)mm/17.5kg
