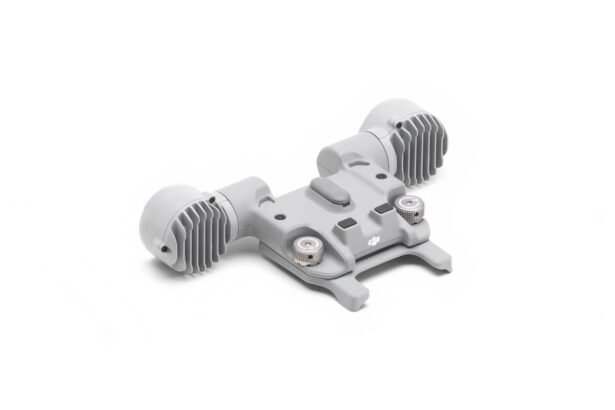

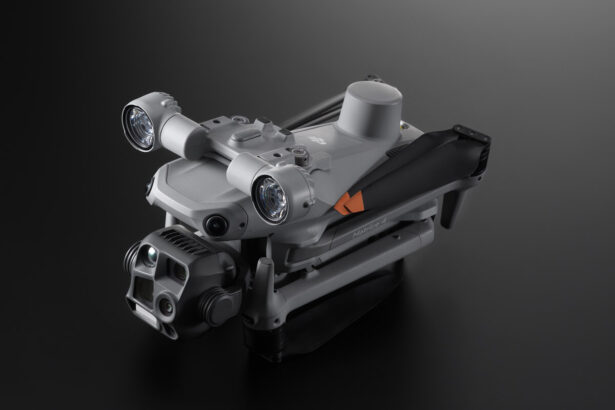

The DJI AL1 Spotlight supports two modes: always-on and strobe. It can clearly illuminate subjects even from a distance of 100 meters. [1] Additionally, it can intelligently link with the gimbal, following the camera’s movements to ensure the illuminated area matches the camera’s view. It also offers a wide fov lighting mode, which can light up a broader area when in wide-angle mode. The spotlight and speaker can be used independently or in combination, meeting the needs of more operational scenarios. Specifications Weight: 99 g (including bracket） Approx. 91 g (excluding bracket) 95×164×30 mm (L×W×H, including bracket） 79×164×28 mm (L×W×H, without bracket) Max Power: 32 W Illuminance: 4.3±0.2 lux @ 100 meters, 17±0.2 lux @ 50 meters Effective Illumination Angle: 23°(10% relative illuminance) Effective Illumination Area: 1,300 square meters @ 100 meters (10% relative illuminance, Normal Mode) 2,200 square meters @ 100 meters (10% relative illuminance, Wide fov Mode) Modes: Always-on and strobe Gimbal Mechanical Range (Tilt): -135° to 45° Gimbal Controllable Range (Tilt): -90° to 35° Max Control Speed (tilt): 120°/s Gimbal Alignment Accuracy: ±0.1° Operating Temperature: -4° to 122° F (-20° to 50° C) Mounting Method: Quick-release hand-tightened screws Compatibility Support for use with DJI Matrice 4 Series aircraft.
