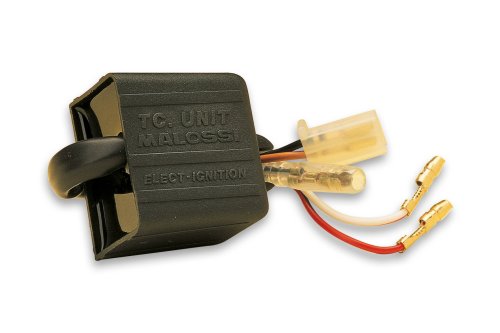

Description Malossi TC Unit Electronic Controller. Not suited for Jog CV. ELECTRONIC COILS Each electronic coil model was expressly studied for the scooter it will be fitted on, and this is the reason why after endless tests on the bench, on rollers and on the racing track an optimal start up map (fixed or variable) has been prepared in order to obtain the best performances of the vehicle. The Malossi electronic coils were designed to allow also a very easy assembling, since they are interchangeable with the original boxes. They are compact and ergonomic, so they can be connected perfectly to the original connectors. Furthermore, these coils allow the elimination of the rpm limiter installed on some standard power boxes, enabling in this way the full exploitation of the engine’s power and torque even at the highest regimes, up to 20.000 rpm. These electronic coils are based on capacitive discharges, therefore they allow maximum limitation of circuit transients during voltage discharge, while obtaining a virtually perfect peak voltage on the spark plug (35.000 – 50.000 volts depending on the engine regime); moreover they grant extremely high discharge voltages and currents with surprising steadiness with respect to engine rpm variation. Technical features Feeding of the electronic coil: original Maximum number of revolutions/minute: 20.000 Voltage discharge: 35.000 – 50.000 volt Advance: fixed For Yamaha Jog Scooter with standard restricted CDI’s up to 2004. This is a direct fitment part, plug in and go.
